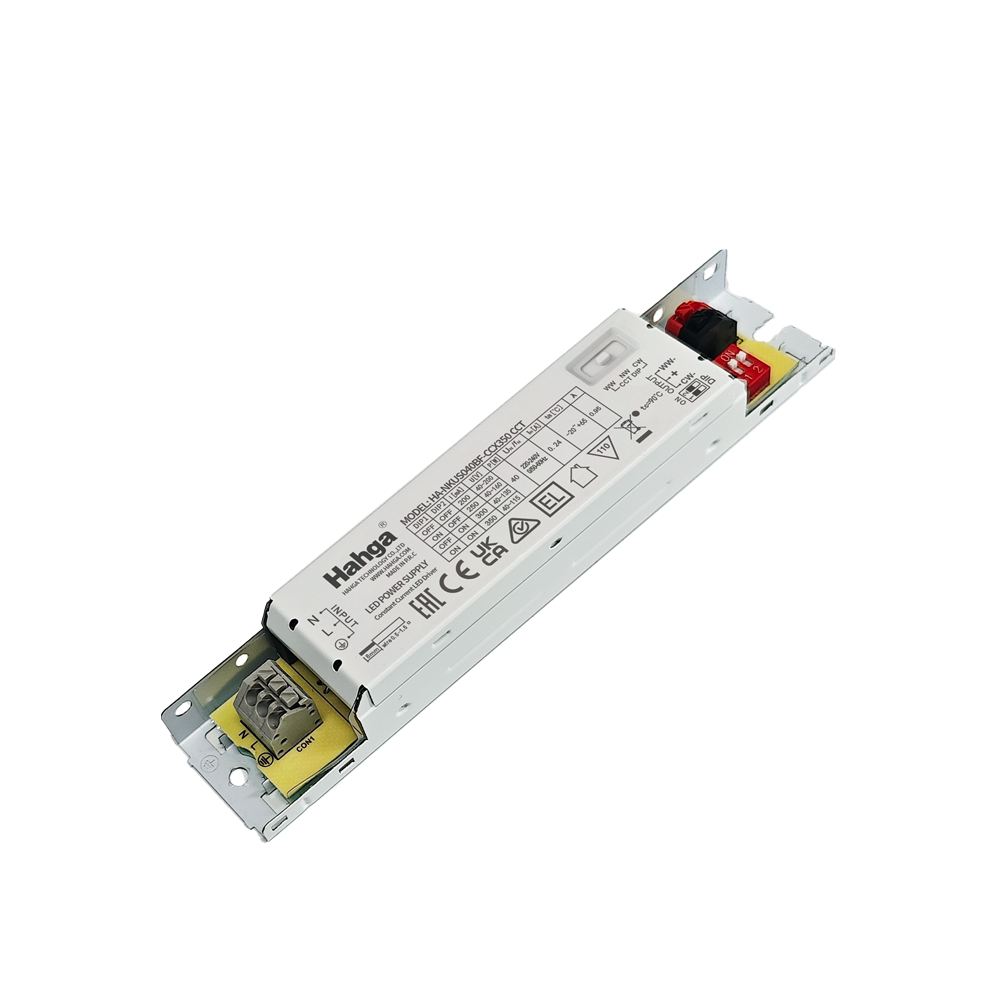

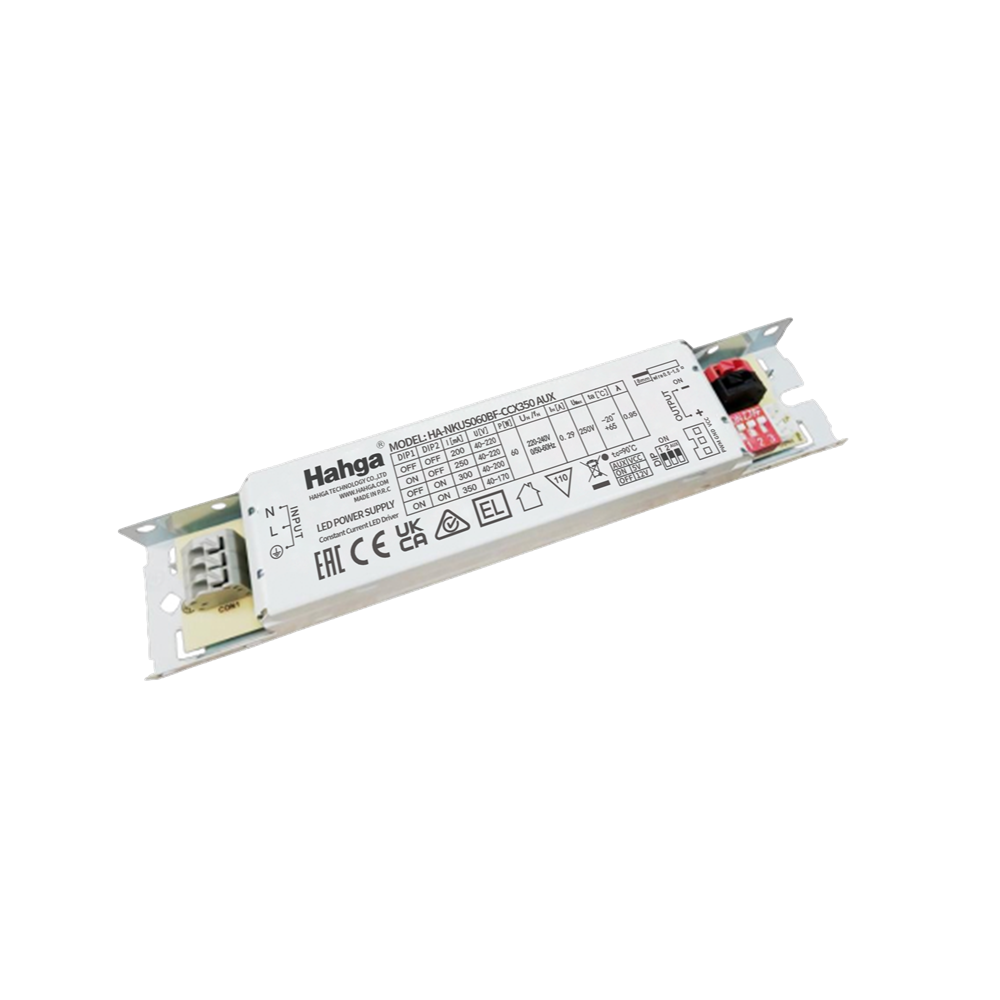

NKUS Series Slim CCT Aux IP20 CC DIP Switch 3W/~W/150W Flicker-Free LED Driver

NKUS Series Slim CCT Aux IP20 CC DIP Switch 3W/~W/150W Flicker-Free LED Driver

Model Name: HA-NKUSxxxBF-CCXxxx

1. The power supply provide continuous output power.

2. Rich indicators, high quality and reliable.

3. Energy-saving, environmental, compact size and low cost.

4. Protection measure: Short Circuit, Over Voltage protection, etc.

5. Flicker-Free.

6. Warranty: 5 years
7. Optional: CCT, Aux

0.00
0.00


Model Name: HA-NKUSxxxBF-CCXxxx

1. The power supply provide continuous output power.

2. Rich indicators, high quality and reliable.

3. Energy-saving, environmental, compact size and low cost.

4. Protection measure: Short Circuit, Over Voltage protection, etc.

5. Flicker-Free.

6. Warranty: 5 years
7. Optional: CCT, Aux


Optional Function
0-10V,PWM &PxCCTAux 5/12VTriacWireless

OptionalOptional


Standard Version

Model

Output Power

(Range, W)

Output Voltage

(V)

Output Current

(mA)

Efficiency

(full load)

P.F.
HA-NKUS020BF-CCX350

5-21

6-21

7.2-21.6

8.4-21

24-105

24-84

24-72

24-60

200

250

300

350

89.5%

89%

88.5%

88%

≥0.95
HA-NKUS040BF-CCX350

8-40

10-40

12-40

14-40

40-200

40-160

40-135

40-115

200

250

300

350

93%

92.5%

92%

91.5%

≥0.95
HA-NKUS060BF-CCX350

8-44

10-55

12-60

14-60

40-220

40-220

40-200

40-170

200

250

300

350

94%

94%

94%

93.5%

≥0.95
HA-NKUS080BF-CCX500

14-80.2

16-80

18-79.7

20-80

40-230

40-200

40-177

40-160

350

400

450

500

94%

93.5%

93%

93%

≥0.95
HA-NKUS100BF-CCX500

14-77

16-88

18-99

20-100

40-220

40-220

40-220

40-200

350

400

450

500

93.5%

94%

94.5%

94.5%

≥0.95
HA-NKUS150BF-CCX700

22-121

24-132

26-143

28-149

40-220

40-220

40-220

40-214

550

600

650

700

94.5%

95%

95%

95%

≥0.95



CCT Version

Model

Output Power

(Range, W)

Output Voltage

(V)

Output Current

(mA)

Efficiency

(full load)

P.F.

HA-NKUS020BF-CCX350

CCT

5-21

6-21

7.2-21.6

8.4-21

24-105

24-84

24-72

24-60

200

250

300

350

89.5%

89%

88.5%

88%

≥0.95

HA-NKUS040BF-CCX350

CCT

8-40

10-40

12-40

14-40

40-200

40-160

40-135

40-115

200

250

300

350

93%

92.5%

92%

91.5%

≥0.95

HA-NKUS060BF-CCX350

CCT

8-44

10-55

12-60

14-60

40-220

40-220

40-200

40-170

200

250

300

350

94%

94%

94%

93.5%

≥0.95

HA-NKUS080BF-CCX500

CCT

14-80.2

16-80

18-79.7

20-80

40-230

40-200

40-177

40-160

350

400

450

500

94%

93.5%

93%

93%

≥0.95

HA-NKUS100BF-CCX500

CCT

14-77

16-88

18-99

20-100

40-220

40-220

40-220

40-200

350

400

450

500

93.5%

94%

94.5%

94.5%

≥0.95

HA-NKUS150BF-CCX700

CCT

22-121

24-132

26-143

28-149

40-220

40-220

40-220

40-214

550

600

650

700

94.5%

95%

95%

95%

≥0.95



Aux Version - 5/12V AUX

Model

Output Power

(Range, W)

Output Voltage

(V)

Output Current

(mA)

Efficiency

(full load)

P.F.

HA-NKUS020BF-CCX350

AUX

5-21

6-21

7.2-21.6

8.4-21

24-105

24-84

24-72

24-60

200

250

300

350

89.5%

89%

88.5%

88%

≥0.95

HA-NKUS040BF-CCX350

AUX

8-40

10-40

12-40

14-40

40-200

40-160

40-135

40-115

200

250

300

350

93%

92.5%

92%

91.5%

≥0.95

HA-NKUS060BF-CCX350

AUX

8-44

10-55

12-60

14-60

40-220

40-220

40-200

40-170

200

250

300

350

94%

94%

94%

93.5%

≥0.95

HA-NKUS080BF-CCX500

AUX

14-80.2

16-80

18-79.7

20-80

40-230

40-200

40-177

40-160

350

400

450

500

94%

93.5%

93%

93%

≥0.95


Specification Dimention (unit: mm, tolerance: ±1mm)
ItemParameter
Output TypeConstant Current
Dimming Type-
Dimming Range-
Output FeaturesNo-Isolation
Rate Voltage AC220-240V, DC176-280V
Limited Voltage Max. 264VAC
Overvoltage protection 300V 30min
T.H.D <15%
Output Current Accuracy 3%
Power-on Time <0.5S
Protection Class Class I
Surge L-N:2KV
Protection OCP/OVP/
Ta -20~+55℃
Tc 70℃
IP rating IP20
Life span 50000 hours
Warranty 5 years


HA-NKUS020BF-CCX350, Size: 165x30x21 mm

HA-NKUS040BF-CCX350, Size: 165x30x21 mm

HA-NKUS060BF-CCX350, Size: 165x30x21 mm

HA-NKUS080BF-CCX500, Size: 195x30x21 mm

HA-NKUS100BF-CCX500, Size: 230x30x21 mm

HA-NKUS150BF-CCX700, Size: 230x30x21 mm


HA-NKUS020BF-CCX350 CCT, Size: 165x30x21 mm

HA-NKUS040BF-CCX350 CCT, Size: 165x30x21 mm

HA-NKUS060BF-CCX350 CCT, Size: 165x30x21 mm

HA-NKUS080BF-CCX500 CCT, Size: 195x30x21 mm

HA-NKUS100BF-CCX500 CCT, Size: 230x30x21 mm

HA-NKUS150BF-CCX700 CCT, Size: 230x30x21 mm


HA-NKUS020BF-CCX350 AUX, Size: 165x30x21 mm

HA-NKUS040BF-CCX350 AUX, Size: 165x30x21 mm

HA-NKUS060BF-CCX350 AUX, Size: 165x30x21 mm

HA-NKUS080BF-CCX500 AUX, Size: 195x30x21 mm
