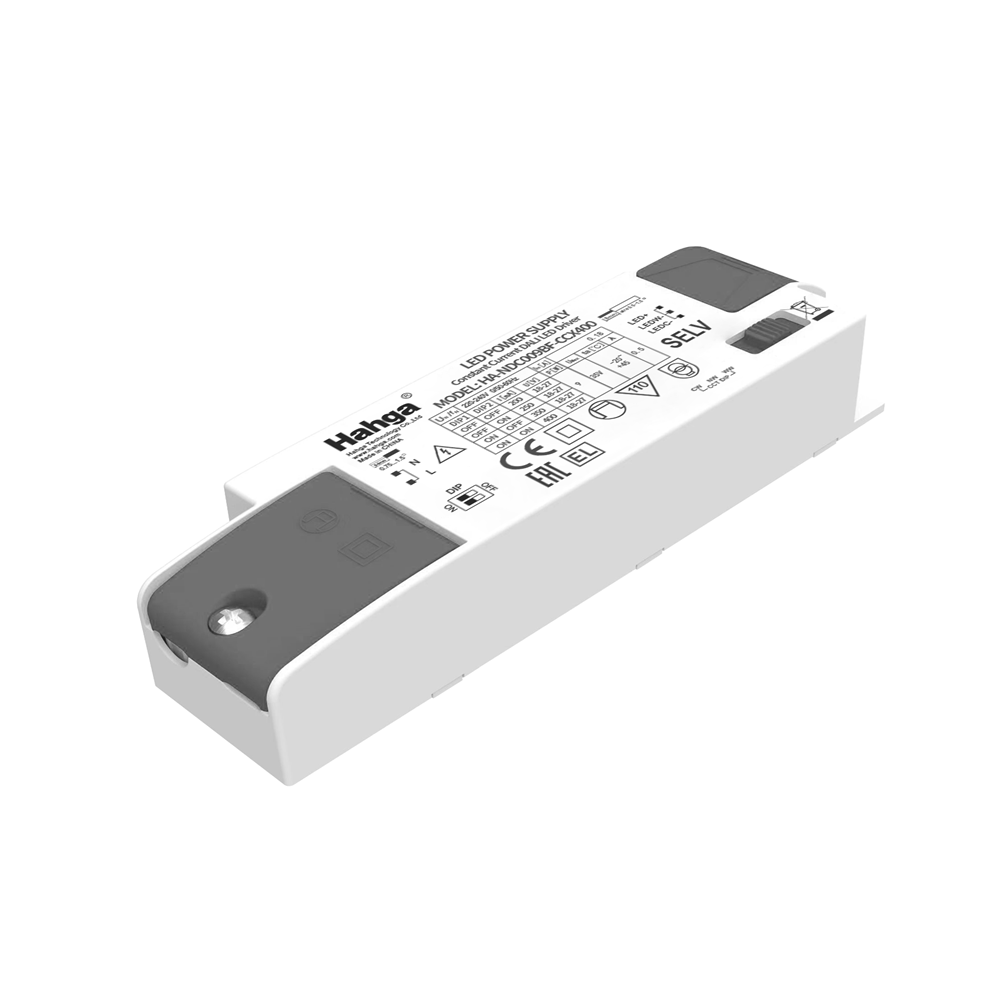

NDC Series IP20 CC DIP Switch 9W/~W/36W Galvanic Isolation, SELV, Flicker-Free LED Driver

NDC Series IP20 CC DIP Switch 9W/~W/36W Galvanic Isolation, SELV, Flicker-Free LED Driver

Model Name: HA-NDCxxxBF-CCXxxxx

1. The power supply provide continuous output power.

2. Rich indicators, high quality and reliable.

3. Energy-saving, environmental, compact size and low cost.

4. Protection measure: Short Circuit, Over Voltage protection, etc.

5. Flicker-Free.

6. Warranty: 5 years
7. DIP Switch Power & Current.
8. Galvanic Isolation, SELV

0.00
0.00


Model Name: HA-NDCxxxBF-CCXxxxx

1. The power supply provide continuous output power.

2. Rich indicators, high quality and reliable.

3. Energy-saving, environmental, compact size and low cost.

4. Protection measure: Short Circuit, Over Voltage protection, etc.

5. Flicker-Free.

6. Warranty: 5 years
7. DIP Switch Power & Current.
8. Galvanic Isolation, SELV


Dimming Mode
0-10V,PWM &PxDALIPushTriacWireless

Model

Output Power

(W)

Output Voltage

(V)

Output Current

(mA)

Efficiency

(full load)

P.F.
HA-NDC009BF-CCX400

9

18-27

200

250

350

400

81%

81%

83%

83%

≥0.5
HA-NDC016BF-CCX400

16

30-40

200

250

350

400

84%

87%

87%

87.5%

≥0.5
HA-NDC024BF-CCX600

24

30-40

300

400

500

600

83.5%

86%

87%

87.5%

≥0.9
HA-NDC036BF-CCX900

36

30-40

600

700

800

900

87.5%

88%

88.5%

88.5%

≥0.9

Specification Dimention (unit: mm, tolerance: ±1mm)
ItemParameter
Output TypeConstant Current
Dimming Type-
Dimming Range-
Output FeaturesIsolation
Rate VoltageAC220-240V, DC220-280V
Limited Voltage Max. 264VAC
Overvoltage protection 360V 30min
T.H.D  <15%
Output Current Accuracy 3%
Power-on Time <0.5S
Protection Class Class II, SELV
Surge L-N:2KV
Protection OCP/OVP/
Ta -20~+55℃
Tc 85℃
IP rating IP20
Life span 50000 hours
Warranty 5 years



HA-NDC009BF-CCX400, Size: 126x38x25 mm

HA-NDC016BF-CCX400, Size: 126x38x25 mm

HA-NDC024BF-CCX400, Size: 126x38x25 mm

HA-NDC036BF-CCX400, Size: 133x40.5x26 mm
