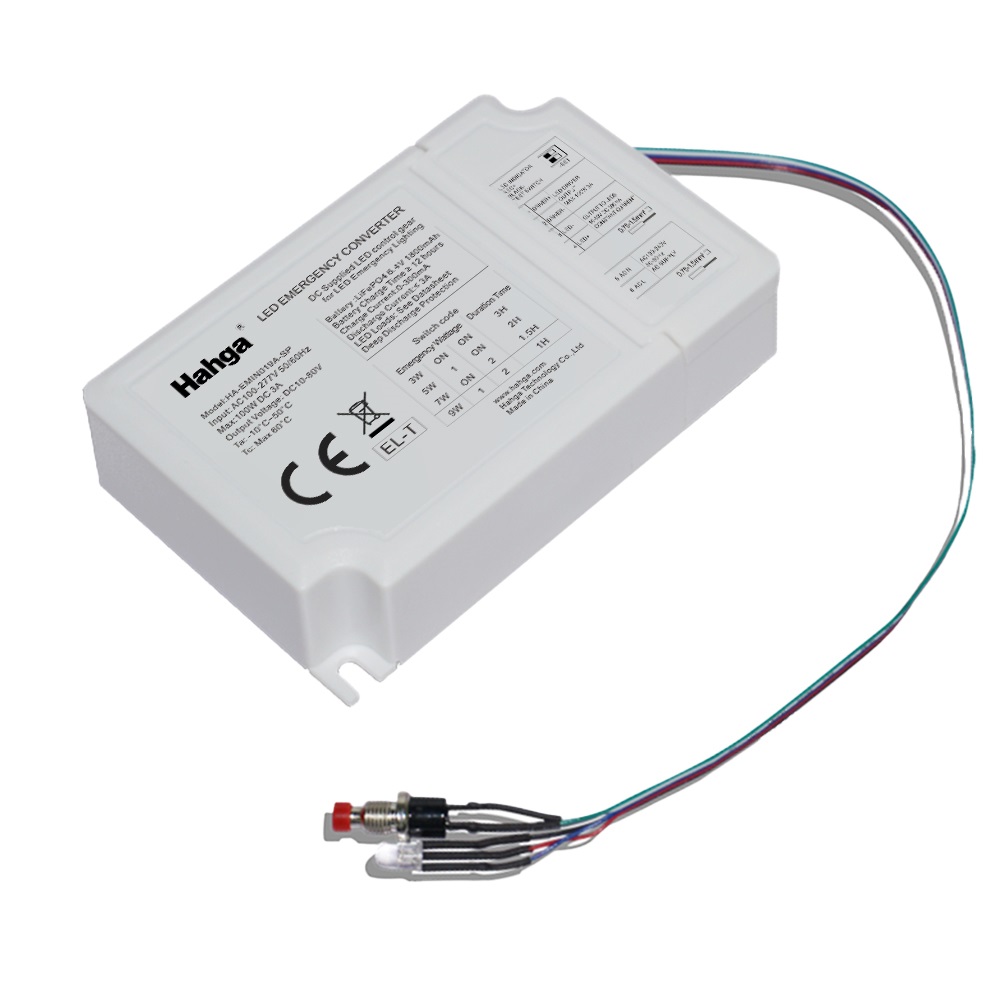

EMIN Series IP20 CC Emergency Converter Integrated DIP Switch 3-9W

EMIN Series IP20 CC Emergency Converter Integrated DIP Switch 3-9W

Model Name:  HA-EMIN019A-SP

1. DIP Switch Multiple Emergency Wattage: 3W/ 5W/ 7W/ 9W.

2. Rich indicators, high quality and reliable.

3. Energy-saving, environmental, compact size and low cost.

4. Multiple protection measure: open circuit, short circuit, overload protection, etc.

5. Warranty: 5 years
6. Duration time 60-90-120-180 minutes switch adjustable.

0.00
0.00


Model Name:  HA-EMIN019A-SP

1. DIP Switch Multiple Emergency Wattage: 3W/ 5W/ 7W/ 9W.

2. Rich indicators, high quality and reliable.

3. Energy-saving, environmental, compact size and low cost.

4. Multiple protection measure: open circuit, short circuit, overload protection, etc.

5. Warranty: 5 years
6. Duration time 60-90-120-180 minutes switch adjustable.


Mode
EmergencyDALIDimmableCCTWireless
✔


Output

H:

220V Output Emerency Convertor

M:

LED Driver& Emergency convertor 2 in 1

L:

Battery Built-in Emergency Convertor

P:

Seperate Battery Emergency Convertor


 ✔

Model

Input Rated Voltage

Output

Load power

Battery

Duration
HA-EMIN019A-SP

AC100-277V

50-60Hz

Constant Power

Output Power:

     DIP 3/5/7/9 W

Output Voltage:

     DC 10-80V
Max. 100W DC ≤3A

LiFePO4

6.4V

1800mAh


≥DIP 60/90/120/180 mins

Specification Dimention (unit: mm, tolerance: ±1mm)
ItemParameter
Rate Voltage AC100-277V 50-60Hz
Load power Max. 100W DC ≤3A
Charging Time ≤24 Hours
Discharge PowerDIP 3/5/7/9W
Discharge ModeConstant Power
Discharge Time ≥60-180 minutes
Battery Pack LiFePO4  6.4V 1800mAh
Protection Class Class II
Charging Current 0-300mA
Protection

Over Charge/

Over Load/

Over Voltage

Ta 0-50℃
Tc Max 60℃
IP rating IP20
Warranty 5 years


        HA-EMIN019A-SP
