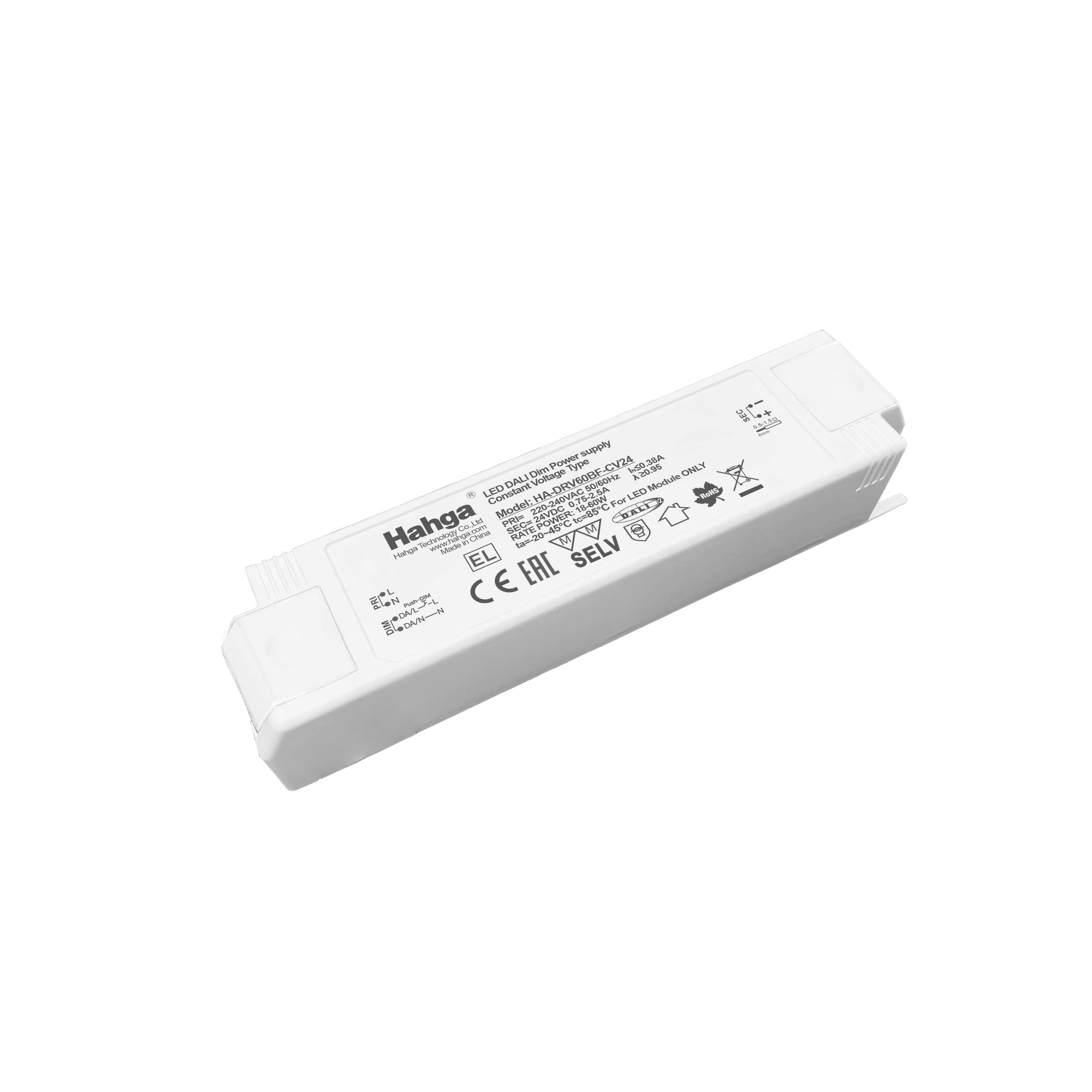

DRV Series IP20 CV DALI (DT6) Flicker-Free Dimmable Driver

DRV Series IP20 CV DALI (DT6) Flicker-Free Dimmable Driver

Model Name:   HA-DRVxxxBF-CV24

1. Constant Voltage for LED strip Light.

2. Rich indicators, high quality and reliable.

3. Energy-saving, environmental, compact size and low cost.

4. Protection measure: No-Load, Short Circuit, Over Load, etc.

5. Warranty: 5 years

0.00
0.00


Model Name:   HA-DRVxxxBF-CV24

1. Constant Voltage for LED strip Light.

2. Rich indicators, high quality and reliable.

3. Energy-saving, environmental, compact size and low cost.

4. Protection measure: No-Load, Short Circuit, Over Load, etc.

5. Warranty: 5 years


Dimming Mode
0-10V,PWM &PxDALIPushTriacWireless

✔ DT6✔

Model

Output Power

(Range, W)

Output Voltage

(V)

Output Current

(mA)

Efficiency

(full load)

P.F.

HA-NRV030BF-CV24

HA-NRV030BF-CV48

3-30W

3-30W

24V

48V

1.25A

0.625A

90%

91%

≥0.95

HA-NRV060BF-CV24

HA-NRV060BF-CV48

6-60W

6-60W

24V

48V

2.5A

1.25A

91%

92%

≥0.95
HA-NRV120BF-CV2430-120W24V5A92%≥0.95
HA-NRV180BF-CV2454-180W24V7.5A92%≥0.95
HA-NRV250BF-CV2475-250W24V10.42A92%≥0.95

Specification Dimention (unit: mm, tolerance: ±1mm)
ItemParameter
Output TypeConstant Voltage
Dimming TypeDALI-2 Push
Dimming Range0.1%~100%
Output FeaturesIsolation
Rate Voltage AC220-240V
Limited Voltage Max. 264VAC
Overvoltage protection 300V 30min
T.H.D <15%
Output Current Accuracy 3%
Power-on Time <0.5S
Protection Class Class II
Surge L-N:2KV
Protection No-Load/OCP/OVP/
Ta -20~+50℃
Tc 85℃
IP rating IP20
Life span 50000 hours
Warranty 5 years


HA-NRV030BF-CV24 size: 135x36x31 mm

HA-NRV030BF-CV48 size: 135x36x31 mm

HA-NRV060BF-CV24  size: 151.5x40.2x31 mm

HA-NRV060BF-CV48  size: 151.5x40.2x31 mm

HA-NRV120BF-CV24  size: 253x42.5x31 mm

HA-NRV180BF-CV24  size: 253x42.5x31 mm

HA-NRV250BF-CV24  size: 270x50x31 mm
