DRC Series IP20 CC DIP Switch DALI (DT6) Flicker-Free Dimmable Driver

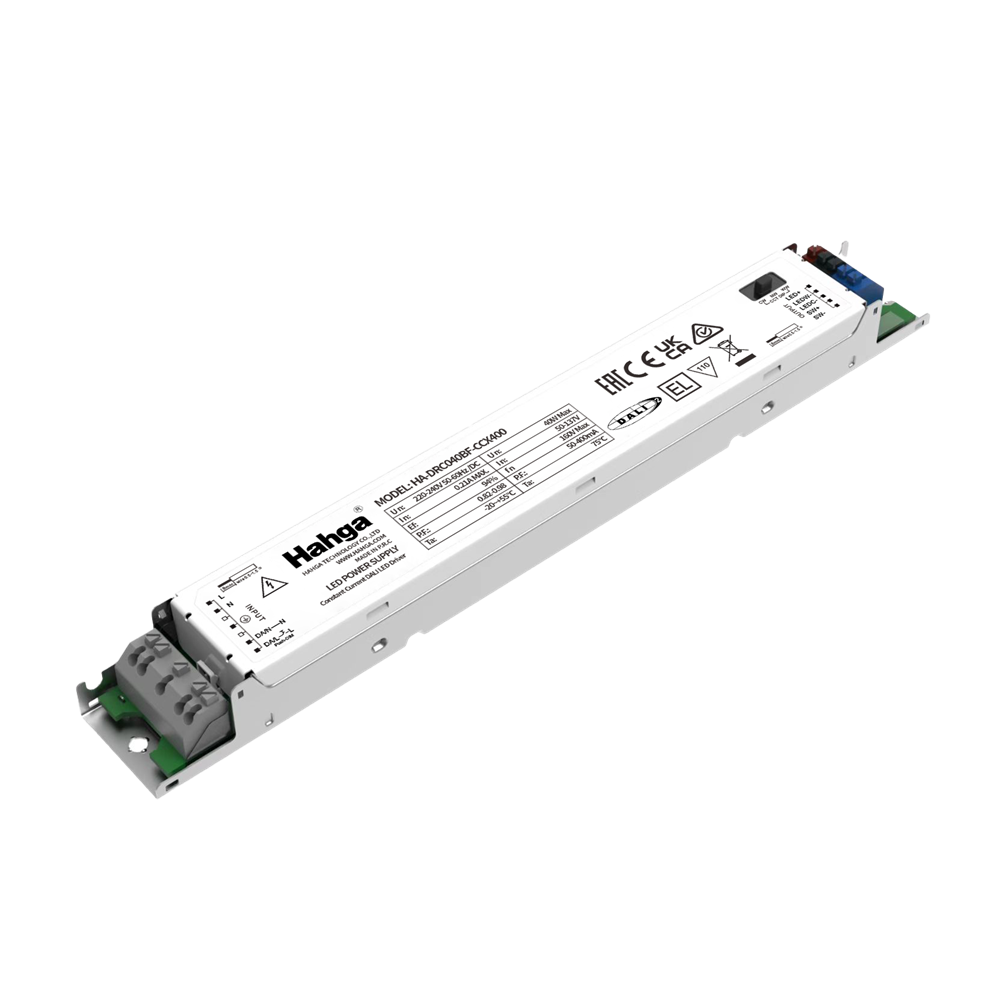

DRC Series IP20 CC DIP Switch DALI (DT6) Flicker-Free Dimmable Driver

Model Name: HA-DRCxxxBF-CCXxxxx

1. Each output channel with CC and output current level adjustable by DIP S.W

2. Meet DALI Protocol EN62386

3. Protections: Short circuit, Over load, Over temperature.

4. Suitable for indoor LED lighting application, such as down light, spot light, etc.
5. Flicker-Free

6. Warranty: 5 years

0.00
0.00


Model Name: HA-DRCxxxBF-CCXxxxx

1. Each output channel with CC and output current level adjustable by DIP S.W

2. Meet DALI Protocol EN62386

3. Protections: Short circuit, Over load, Over temperature.

4. Suitable for indoor LED lighting application, such as down light, spot light, etc.
5. Flicker-Free

6. Warranty: 5 years

Dimming Mode
0-10V,PWM &PxDALIPushTriacWireless

✔ DT6✔

Model

Output Power

(Range, W)

Output Voltage

(V)

Output Current

(mA)

Efficiency

(full load)

P.F.
HA-DRC040BF-CCX400

2.5-6.85

5-13.7

7.5-20

10-27.4

12.5-33.7

15-40

17.5-40

20-40

50-137

50-137

50-137

50-137

50-137

50-133

50-114

50-100

50

100

150

200

250

300

350

400

84%

90%

91.5%

92%

92.5%

92.5%

92%

91.5%

>0.95
HA-DRC080BF-CCX550

2.5-11

5-22

7.5-33

10-44

12.5-55

15-66

17.5-77

20-80

22.5-80

25-80

27.5-80

50-220

50-220

50-220

50-220

50-220

50-220

50-220

50-220

50-177

50-160

50-145

50

100

150

200

250

300

350

400

450

500

550

88%

92%

93%

93.5%

94%

94%

94%

93.5%

93.5%

93.5%

93%

>0.95
HA-DRC100BF-CCX800

10-44

12.5-55

15-66

17.5-77

20-88

22.5-100

25-100

27.5-100

30-100

32.5-100

35-100

37.5-100

40-100

50-220

50-220

50-220

50-220

50-220

50-220

50-200

50-182

50-167

50-154

50-143

50-133

50-125

200

250

300

350

400

450

500

550

600

650

700

750

800

94%

94%

94%

94%

94%

94%

94%

94%

93.5%

93%

93%

93%

92.5%

>0.95
HA-DRC150BF-CCX900

12-58

15-72

18-87

21-101

24-116

27-130

30-145

33-150

36-150

40-150

43-150

46-150

50-150

50-150

50-150

64-290

64-290

64-290

64-290

64-290

64-290

64-290

64-273

64-250

64-231

64-215

64-200

64-188

64-177

64-166

200

250

300

350

400

450

500

550

600

650

700

750

800

850

900

94.5%

94.5%

95%

95%

95%

95%

95%

95%

95%

94.5%

94.5%

94.5%

94.5%

94%

94%

>0.95

Model

Output Power

(Range, W)

Output Voltage

(V)

Output Current

(mA)

Efficiency

(full load)

P.F.
HA-DRC040BF-CCX400 E2.5-4050-13750-40092.5%>0.95
HA-DRC080BF-CCX550 E2.5-8050-22050-55094%>0.95
HA-DRC100BF-CCX800 E10-10050-220200-80094%>0.95
HA-DRC150BFCCX900 E12-15064-290200-90095%>0.95



Specification Dimention (unit: mm, tolerance: ±1mm)
ItemParameter
Output TypeConstant Current
Dimming TypeDALI-2 Push
Dimming Range1%-100%
Output FeaturesNo-Isolated
Rate Voltage AC220-240V, DC220-240V
Limited Voltage 264VAC
Overvoltage protection 360V 30min
T.H.D <10%
Output Current Accuracy ±3%
Power-on Time <0.5S
Protection Class Class II,
Surge L-N:2KV, L/N-FG:2KV
Protection SCP/OLP/OTP
Ta -20~+50/45℃
Tc -40~+85℃
IP rating IP20
Life span 50000 hours
Warranty 5 years


HA-DRC040BF-CCX400, size: 238x30x21 mm;

HA-DRC080BF-CCX550, size: 238x30x21 mm;

HA-DRC040BF-CCX400, size: 278x30x21 mm;

HA-DRC040BF-CCX400, size: 302x30x21 mm;


HA-DRC040BF-CCX400 E, size: 238x30x21 mm;

HA-DRC080BF-CCX550 E, size: 238x30x21 mm;

HA-DRC040BF-CCX400 E, size: 278x30x21 mm;

HA-DRC040BF-CCX400 E, size: 302x30x21 mm;
